CAN总线采集器

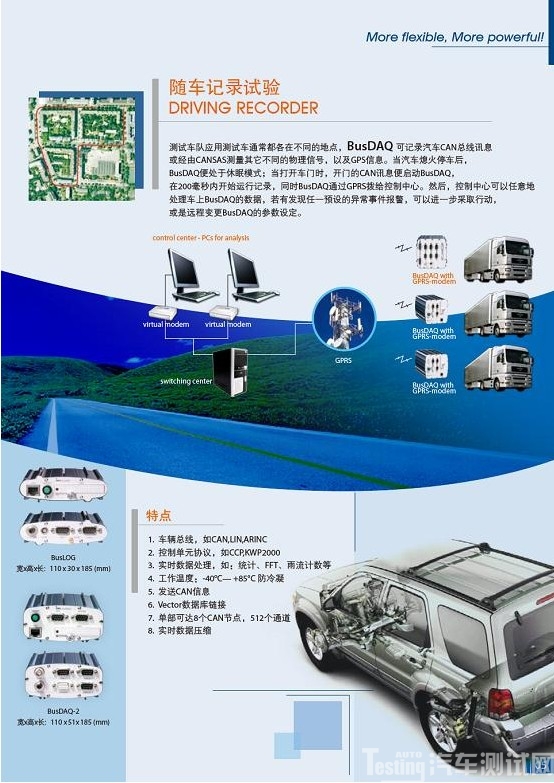

This affordable module is designed with permanently configured basic functions for standard, clearly defined data logging tasks. Its low power consumption, its signal-driven Sleep Mode and its capacity for rapid resumption of measurement by means of "Wake up on CAN", in only 200 ms, destines imc BUSLOG particularly for vehicle and fleet test applications. In such settings, the module’s high degree of data integrity, its self-activation mode, and its remote monitoring capability via Internet are great assets.

Front		Back
Dimensions (W x H x D): 185 mm x 30 mm x 110 mm; Weight: ca. 650 g; Operating temperature: -40°C to +85°C		Power supply: 10 - 50 VDC; CAN-Bus Interface with 2 nodes; Vector database import

imc BUSDAQ-2 with its two nodes and expanded functions such as online functions, modem, Display, and direct GPS connection is the standard module for measurement networks with decentralized CAN subscribers such as sensors, control units or imc CANSAS measurement modules.
Any imc BUSDAQ can easily be expanded for the measurement of additional analog signals. Using measuring modules from the imc CANSAS-family, you can create complex, distributed and synchronized data acquisition systems with several hundred channels.

Front		Back
Dimensions (W x H x D): 185 mm x 51 mm x 110 mm; Weight: ca. 650 g; Operating temperature: -40°C to +85°C		Power supply: 10 - 50 VDC; CAN-Bus Interface with 2 nodes; Opt. vector database import; Modem connection; Display terminal connection; GPS-connection

imc BUSDAQ-X is the universal, configurable system module which can be expanded with additional multi-bus interfaces to up to 8 nodes. With the extended functions, such as online-functions, WLAN, modem, Display, digital in- and outputs, as well as directly connectible GPS, even complex measurement networks are no problem.

Front		Back
Dimensions (W x H x D): 185 mm x 110 mm x 110 mm; Weight: ca. 2 kg (with 8 nodes); Operating temperature: -40°C to +85°C; 4 digital inputs; 4 digital Outputs		Power supply: 10 - 50 VDC; CAN-Bus Interface with 2 nodes; Expandable to 8 nodes; Available with LIN-Bus and J1587-interface; Opt. vector datbase import; Modem connection; Display terminal connection; GPS-connection
